planetary reducer

p06-a

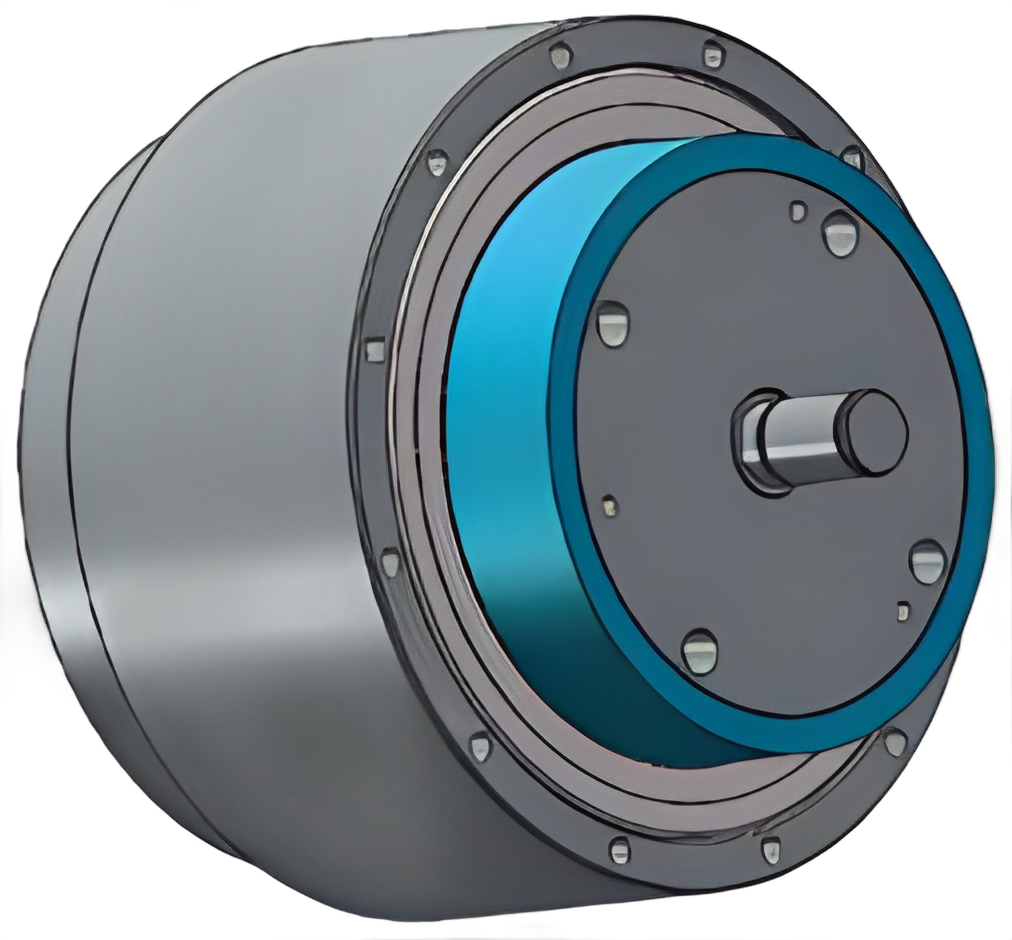

301-2-001040-00 (with brake shaft)

Rated power	3KW
Rated input speed	3000r/min
Max input speed	4500r/min
Reduction ratio	40:1
Rated output torque	600NM
Max output torque	1100NM
Noise	≤65dB
Max radial load	3000KG
Backlash	≤30arcmin
Full-load efficiency	≥90%
Service life	≥20000h
Lubrication	Maintenance-free synthetic grease
Ambient operating temperature	-15°C~+90°C
Protection rating	IP54
Recommended matching motor	1KW-3KW
Single-wheel drive load	3000KG
Travel speed	0.94m/s-1.1m/s
Matching wheel diameter	Φ240-Φ280/Φ270

Mounting dimensions and reduction ratios can be adjusted and customized to meet customer requirements.

Customization

Customization Process

We engineer every reducer around four real-world priorities. Safety — dependable long-running performance so your fleet keeps moving. Total cost of ownership — higher efficiency and lower maintenance to cut running costs over the product lifetime. Adaptability — custom mounting, ratio and torque options so the drive matches your exact application. Engineering innovation — we do not just "make parts"; we develop drive solutions that advance what your robots can do.
